OpenLink ODBC Driver for Microsoft SQL Server and Sybase (Lite Edition) Installation and Configuration

Review Preinstallation Documentation: Pre-Installation Configuration for Microsoft SQL Server Single-Tier Drivers (Windows)

Installation

The OpenLink ODBC Driver for Microsoft SQL Server and Sybase for Windows is distributed in a single .msi file.

Click the Open link that appears in your Downloads dialog.

The installer will display a Welcome message. Click "Next."

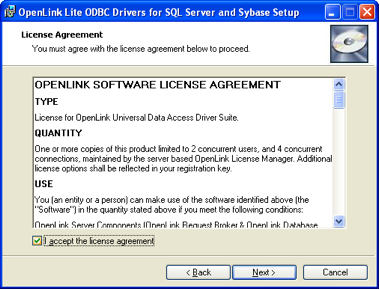

The next screen will display the License Agreement for the OpenLink Lite Driver. Please read and check the "I accept the license agreement" checkbox. Then, click Next.

Your driver needs a license file to operate. Click the Browse button to locate a commercial or evaluation license that you have previously downloaded onto your local hard drive. Alternatively, click the Try & Buy button to obtain a commercial or evaluation license.

You can check the "I don't want to install a license file right now" check box. This option will permit you to install the product. However, you will not be able to use the product until you obtain a commercial or evaluation license key.

Click Next.

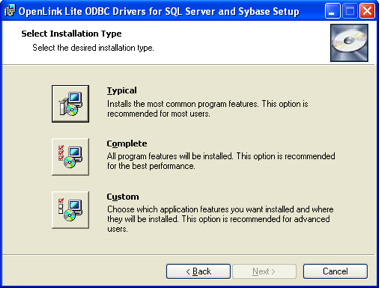

Choose among the Typical, Complete, or Custom installation types.

Click Next.

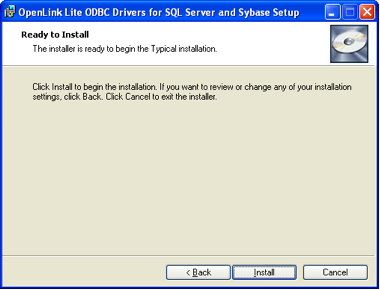

Click the Install button.

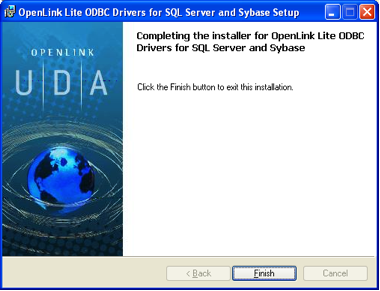

Installation is complete. Click the Finish button.

You may be prompted to restart your computer, if you have a pre-existing OpenLink License Manager running on your computer.

Configuration

Open the ODBC Data Sources Administrator that appears in the Administrative Tools section of your Control Panel.

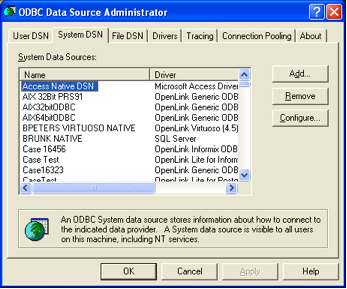

Click the System DSN tab.

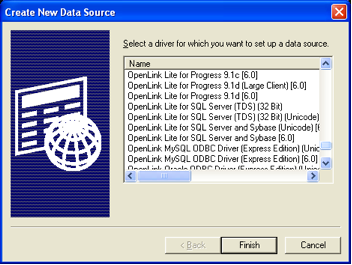

Click the Add button. Then, select the OpenLink Microsoft SQLServer and Sybase Lite Driver from the list of available drivers. Select the Unicode version of the driver if and only if you are working with multi-byte character sets, as unnecessary translations can significantly affect ODBC performance.

Click Finish.

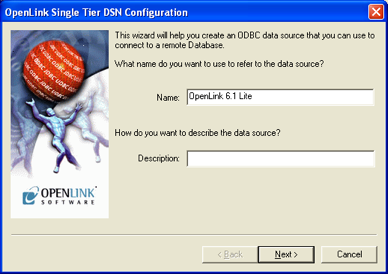

The first dialog prompts for a Data Source Name and optional description.

Click Next.

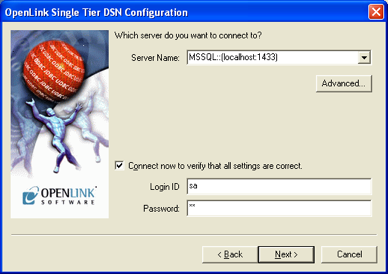

The second dialog prompts for information that identifies the Microsoft SQL Server DBMS and database.

• Server Name - Select the drop down list box to invoke the driver's Dynamic discovery of Microsoft SQL Server instance on the network and choose the instance require if available.

• Connect now to verify that all settings are correct - Will attempt to connect to the database, once you click Continue.

• Login ID - A valid Microsoft SQL Server username

• Password- A valid Microsoft SQL Server password

Use the "Advanced" button to manually configure a connection if the Microsoft SQL Server instance could not be dynamically located, as detailed below.

• ServerType - An OpenLink proprietary parameter that associates the connection with a particular TDS version.

• Hostname - The hostname or IP address on which Microsoft SQL Server listens

• Port number - The TCP port on which Microsoft SQL Server lists

• Server Name - Microsoft SQL Server instance name on the specified host. A Microsoft SQL Server instance can also be specified by appending "\InstanceName" to the ServerName ie "ServerName\InstanceName"

• Mirror Host - The name of the Failover Server hosting the mirrored database if configured

• Use strong encryption of data - Enable SSL encryption of data between driver and database

• Use Mars - Multiple Active Result Sets enables the concurrent processing of multiple statements/queries and/or result sets on a single connection

• Verify Server Certificate - Verify the Database Server SSL certificate against the one specified in the "CA file" field

• CA file - Specify the location of a Valid SSL Certificate for use during the connection

Click Next to continue.

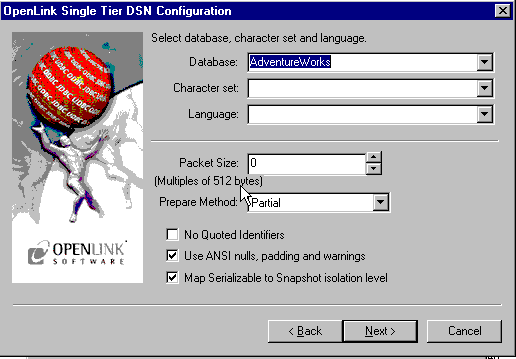

The third dialog takes a combination of database specific and optional parameters.

• Database- The Microsoft SQL Server database

• Character set - The Microsoft SQL Server character set

• Language- The Microsoft SQL Server language

• Packet Size- A value that determines the number of bytes per network packet transferred from the database server to the client. The correct setting of this attribute can improve performance. When set to 0, the initial default, the driver uses the default packet size as specified in the Sybase server configuration. When set to -1, the driver computes the maximum allowable packet size on the first connect to the data source and saves the value in the system information. When set to x, an integer from 1 to 10, which indicates a multiple of 512 bytes (for example, Packet Size of 6 means to set the packet size to 6 * 512 equal 3072 bytes). For you to take advantage of this connection attribute, you must configure the System 10 server for a maximum network packet size greater than or equal to the value you specified for Packet Size.

• Prepare Method- This option is specific to the TDS Driver for Sybase & Microsoft SQL Server SQL Servers. It can take the values None, Partial Full (connectoptions -O [0, 1, 2] respectively). It is used to determine whether stored procedures are created on the server for calls to SQLPrepare. More

• No Quoted Identifiers- This option indicates that the underlying driver does not support quoted identifiers, which is required for Jet engine based products like MS Access.

• Use ANSI nulls, padding and warnings- This option affects TDS agent & Lite Driver connections to Microsoft SQL Server databases. Microsoft SQL Server connectivity is not affected. More

• Map Serializable to Snapshot isolation level - Enable Snapshot transaction isolation level in the driver. Snapshot Isolation is a new transaction isolation level available in Microsoft SQL Server 2005

Click Next to continue.

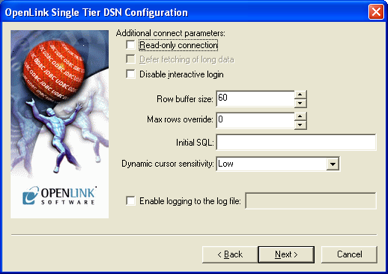

The fourth dialog enables you to set optional, ODBC connection parameters.

• Read-only connection - Specifies whether the connection is "Read-only." Make sure the checkbox is unchecked to request a "Read/Write" connection.

• Defer fetching of long data - Defers fetching of LONG (BINARY, BLOB etc.) data unless explicitly requested in a query. This provides significant performance increases when fields in query do not include LONG data fields.

• Disable interactive login - Suppresses the ODBC "Username" and "Password" login dialog boxes when interacting with your ODBC DSN from within an ODBC compliant application.

• Row Buffer Size - This attribute specifies the number of records to be transported over the network in a single network hop. Values can range from 1 to 99.

• Max rows Override - Allows you to define a limit on the maximum number of rows to be returned from a query. The default value of 0 means no limit.

• Initial SQL - Lets you specify a file containing SQL statements that will be run automatically against the database upon connection.

• Dynamic Cursor Sensitivity - Enables or disables the row version cache used with dynamic cursors. When dynamic cursor sensitivity is set high, the Cursor Library calculates checksums for each row in the current rowset and compares these with the checksums (if any) already stored in the row version cache for the same rows when fetched previously. If the checksums differ for a row, the row has been updated since it was last fetched and the row status flag is set to SQL_ROW_UPDATED. The row version cache is then updated with the latest checksums for the rowset. From the user's point of view, the only visible difference between the two sensitivity settings is that a row status flag can never be set to SQL_ROW_UPDATED when the cursor sensitivity is low. (The row status is instead displayed as SQL_ROW_SUCCESS.) In all other respects, performance aside, the two settings are the same. Deleted rows don't appear in the rowset. Updates to the row since the row was last fetched are reflected in the row data, and inserted rows appear in the rowset, if their keys fall within the span of the rowset. If your application does not need to detect the row status SQL_ROW_UPDATED, you should leave the 'High Cursor Sensitivity' checkbox unchecked, as performance is improved. The calculation and comparison of checksums for each row fetched carries an overhead. If this option is enabled, the table oplrvc must have been created beforehand using the appropriate script for the target database.

• Enable logging to the log file - Check the checkbox and use the associated textbox to provide the full path to a file in which to log diagnostic information.

Click Next to continue.

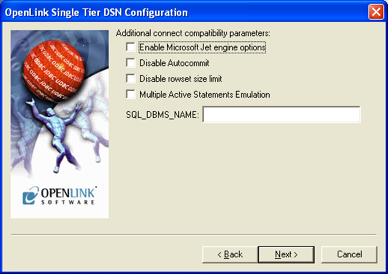

The fifth dialog enables you to set additional parameters to enhance compatibility with applications.

• Enable Microsoft Jet engine options - This option facilitates translation of certain datatypes by the Microsoft Jet Engine. If you utilize MS applications, and you notice that money and other datatypes are mishandled, test with Jet fix enabled.

• Disable Autocommit - Changes the default commit behaviour of the OpenLink driver. The default mode is AutoCommit (box unchecked).

• Disable rowset size limit - Disables a limitation enforced by the cursor library. This limitation is enforced by default. It prevents the driver from claiming all available memory in the event that a resultset generated from an erroneous query is very large. The limit is normally never reached.

• Multiple Active Statements Emulation - Enables use of Multiple Active statements in an ODBC application even if the underlying database does not allow this, as it is emulated in the driver.

• SQL_DBMS Name - Manually overrides the SQLGetInfo(SQL_DBMS_NAME) response returned by the driver. This is required for products like Microsoft InfoPath for which the return the value should be "SQL Server".

Click Next to continue.

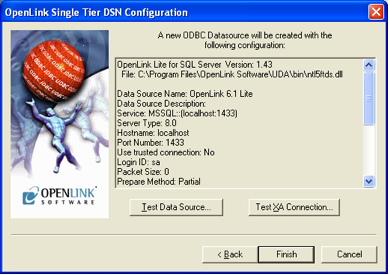

The final dialog enables you to text your Data Source. Click the Test Data Source button.

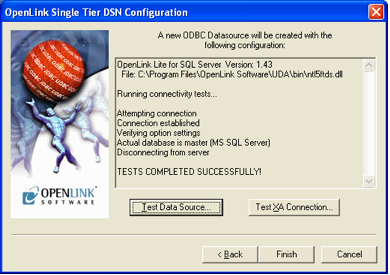

A connection has been established.

Proceed to Commercial Licensing Documentation:

Should you decide to purchase a commercial license at the end of your evaluation period, be sure to consult our documentation which explains the placement and uptake of commercial license files and the use of our OpenLink License Manager technology: License Technology & Application
